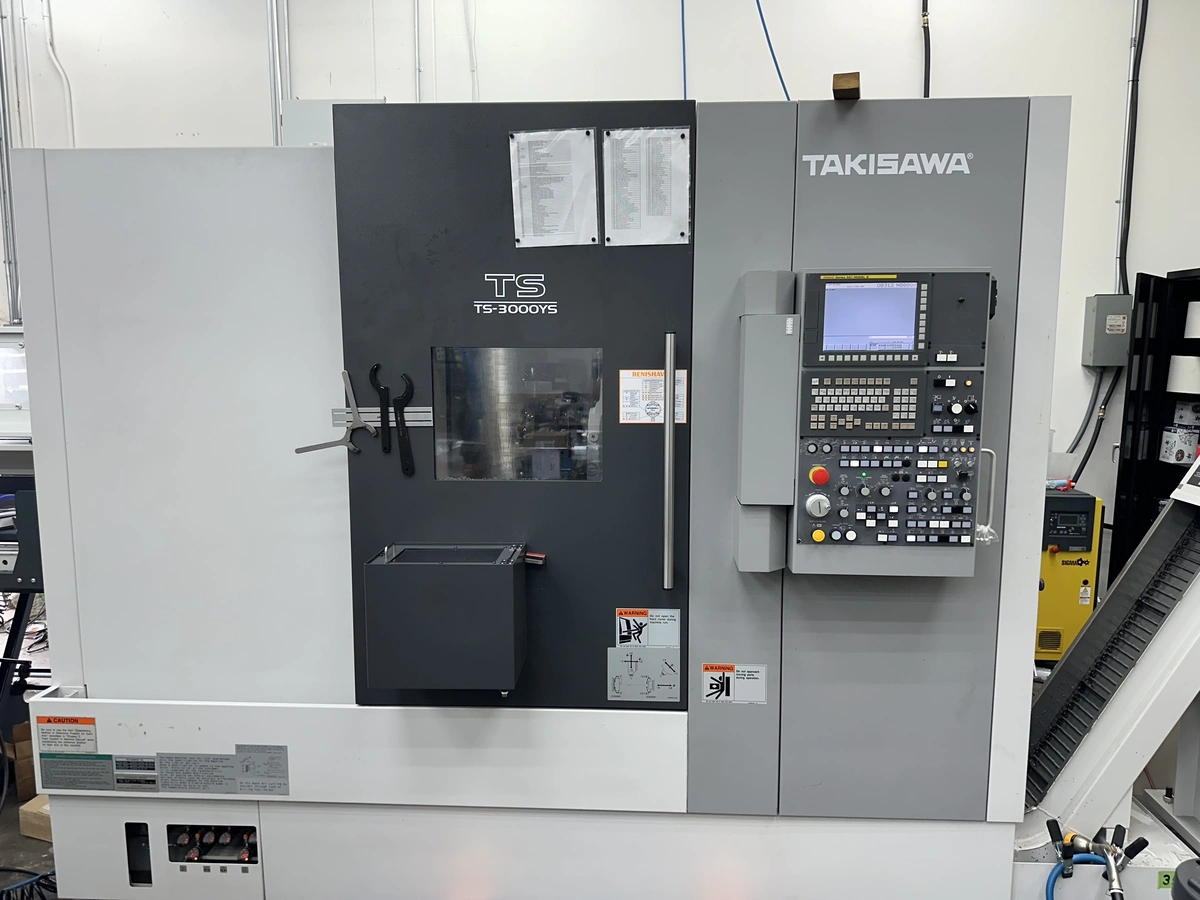

2022 TAKISAWA TS-3000YS
Have one to sell?
ConditionUsed
1 available
5-Axis CNC Lathe, equipped with FANUC 32i Model B. Features include 550 mm machining length, 8" chuck size, 67 mm bar capacity, 6,000 RPM max, and 370 mm turning diameter. 12 tool slots and high driven tool speeds.
Axes/capacity
X-axis travel mm: 261
Y-axis travel mm: -50+70
Z-axis travel mm: 630
C-axis : 0,001
Turning length mm: 545
Swing diameter mm: ø 292
Bar work capacity mm: 67
Turret
Tool holder: BNT-40
Number of tool slots St .: 12
Speed driven tools RPM: 6000
Drive power driven tools kW: 7,5/3,7
Main spindle
Speed spindle rpm: 5000
Drive power spindle kW: 15/11
Spindle bore mm: ø77
Counter spindle
Speed spindle rpm: 6000
Drive power spindle kW: 11/7.5
Spindle bore mm: ø53
Counter spindle travel mm: 665
FANUC 32i Model B
Renishaw probing system
LNS QLS80 S2 bar feeder
Chip conveyor
Part catcher for right spindle (max. ø80 mm and L 120 mm)
Air or water through the center of the spindle (counter spindle)
Driven tools included
Rated power kVA: 31
